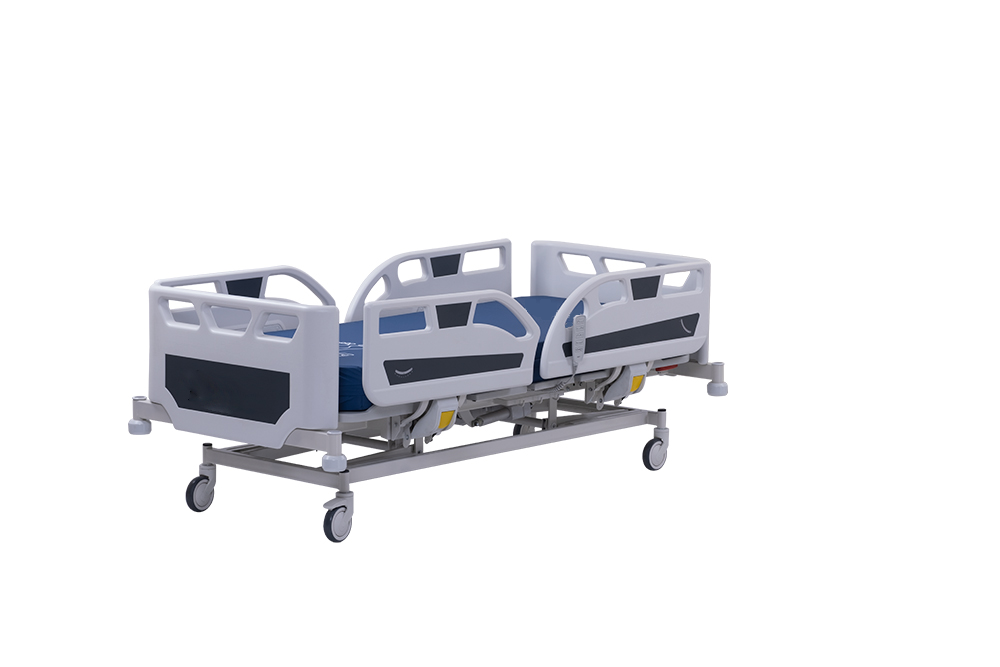

PS-NNB01A Electrical Patient Bed, Four Motor

Electrically operated backrest, footrest, height, Trendelenburg movements

Patient control unit

Nurse control unit (optional)

Auto contour

Retracting backrest for pressure relief

Fold down PP side rails

Electrostatic powder coated metal frame

Easily removable PP head and foot boards

Two lockable castors

Height adjustable stainless steel IV pole

Easily adjustable knee break position

Plastic bumpers in the four corners of the bed

Battery backup (optional)

Dual sided manual CPR in the backrest (optional)

Accessories sockets at the bed corners

Angle indicator for backrest and Trendelenburg

IPX4 standard electronic system

Technical Data:

Overall Length: 212 cm

Overall Width: 102 cm

Height Range: 40-82 cm

Trendelenburg: 0°-16°

Reverse Trendelenburg: 0°-16°

Backrest Angle (Max.): 70°

Legrest Angle (Max.): 40°

Castor Diameter: 12,5 cm

Under Bed Clearance: 15 cm

Safe Working Load: 230 kg


Electrical Data:

Power In:  1.5 A max. 230V AC 50-60 Hz

Electrical Shock Protection : Class I, Type B

Liquid Ingress Protection : IPX4 - IPX6

Batteries : 2x 12V Series, Connected, Sealed, Rechargeable, Lead / Acid gel,   12 amp hrs.
