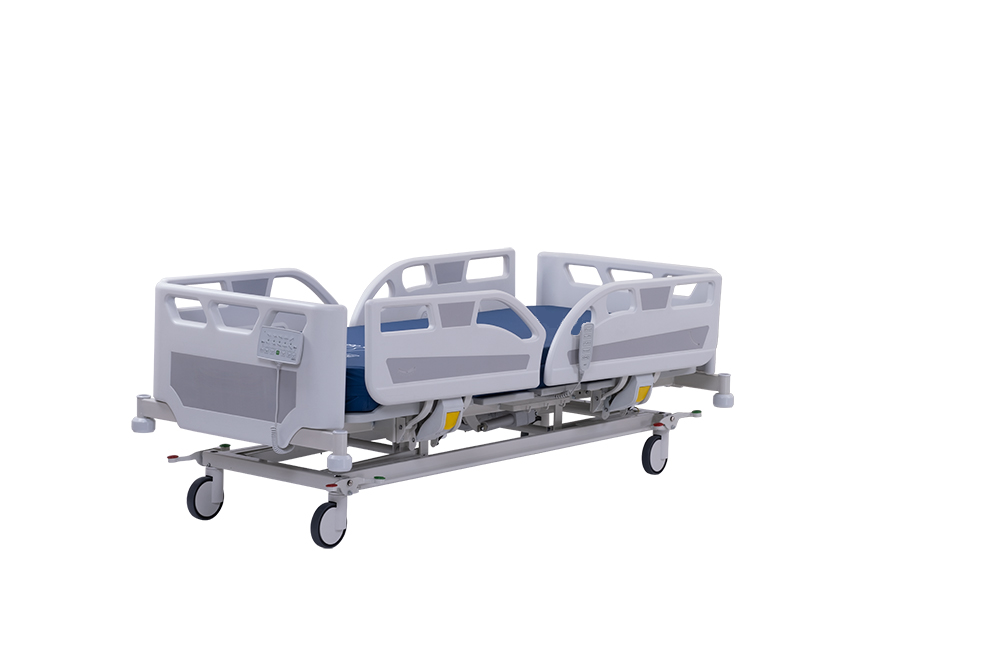

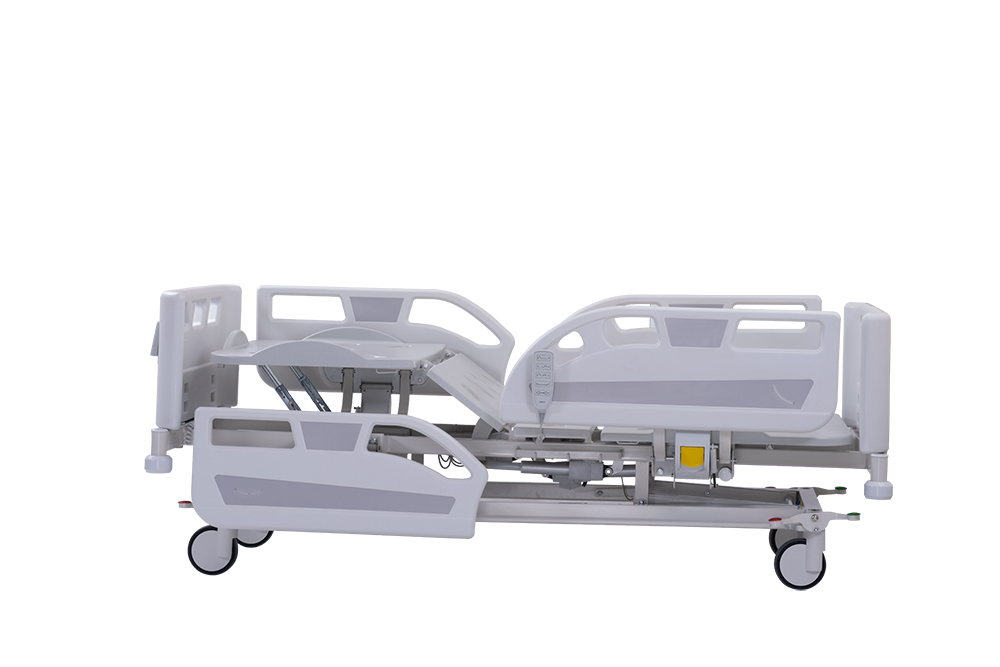

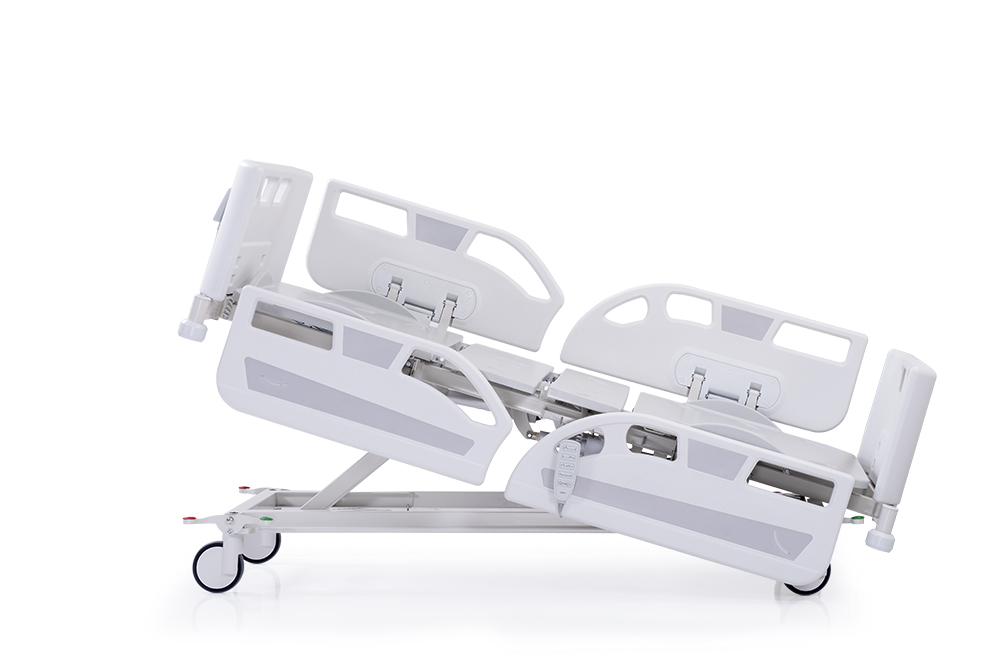

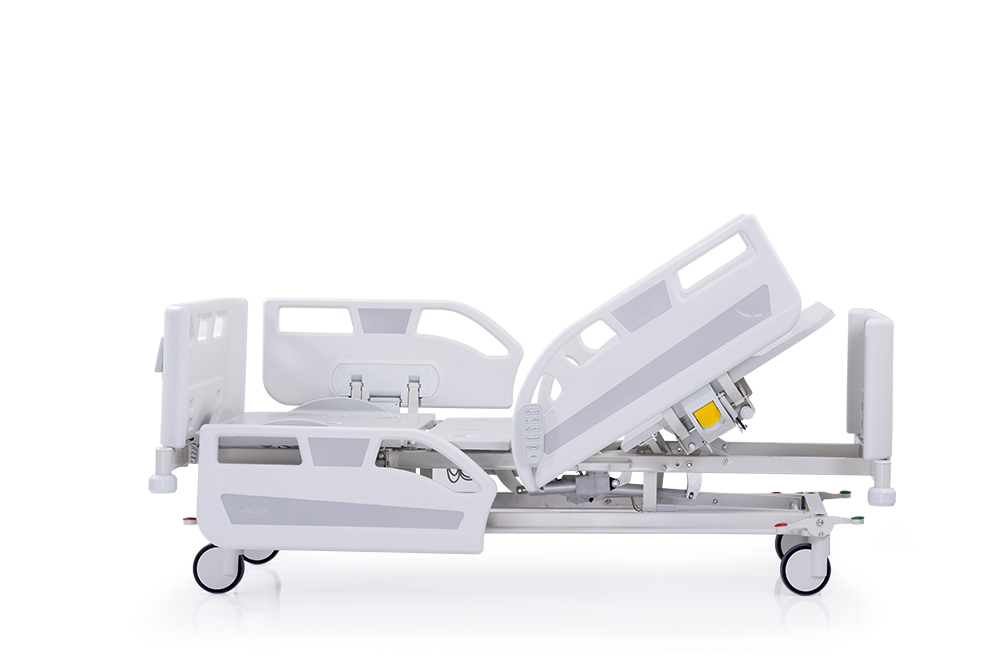

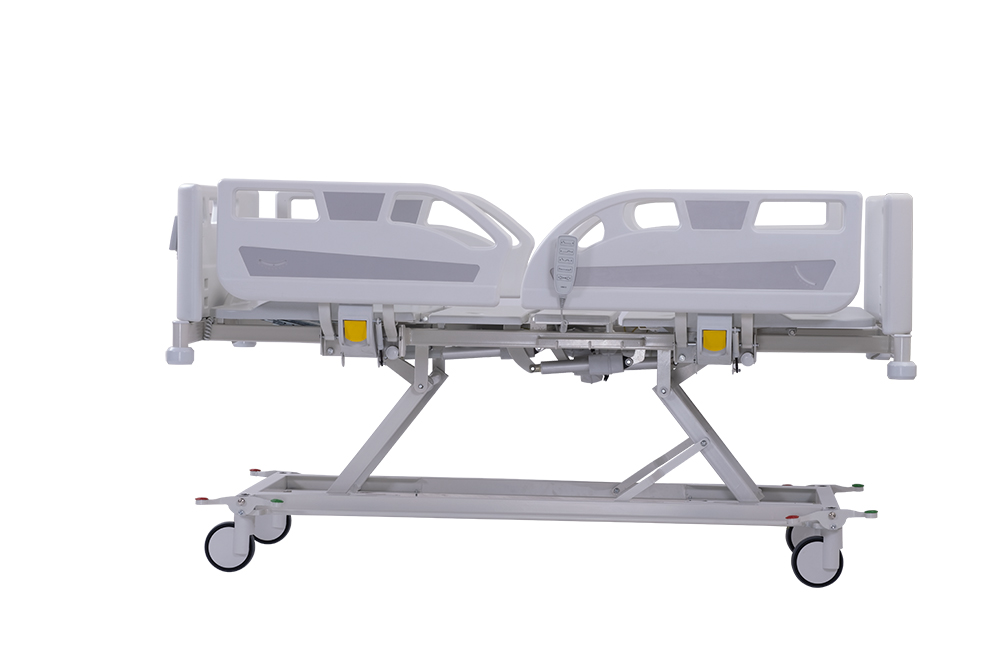

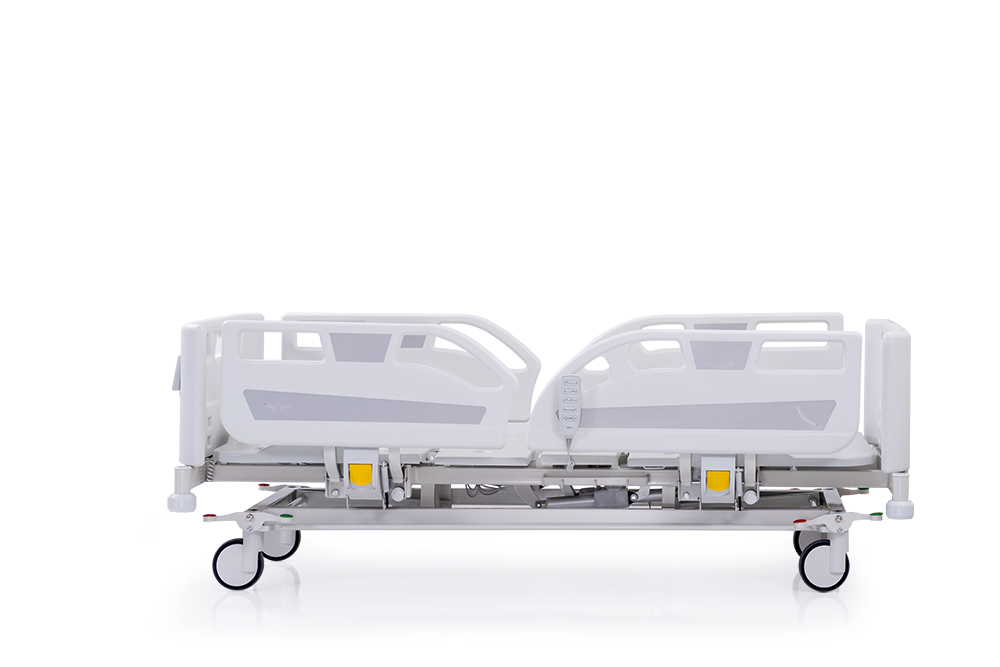

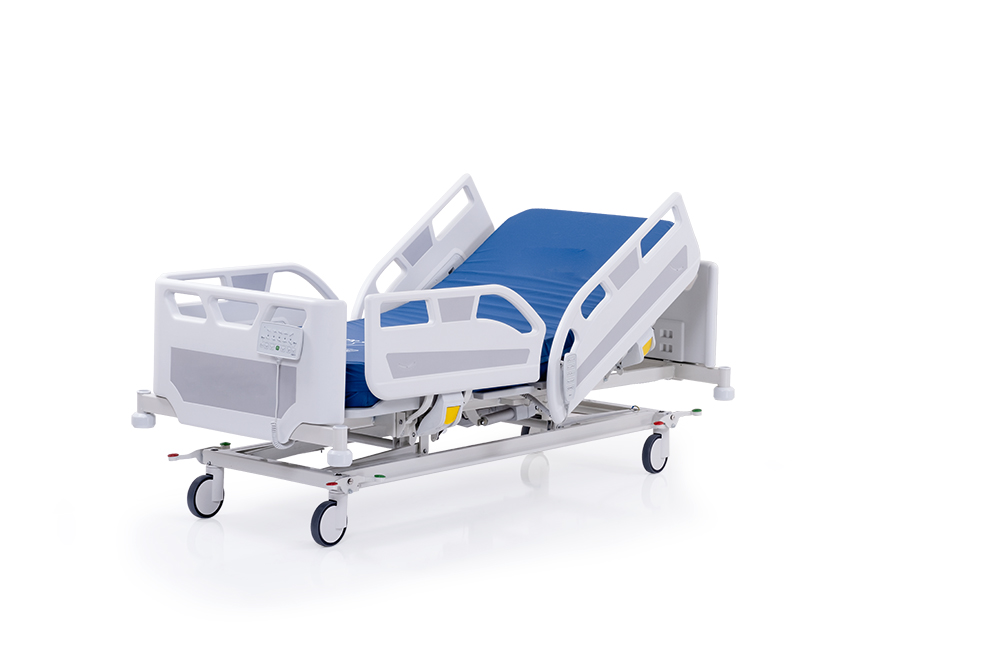

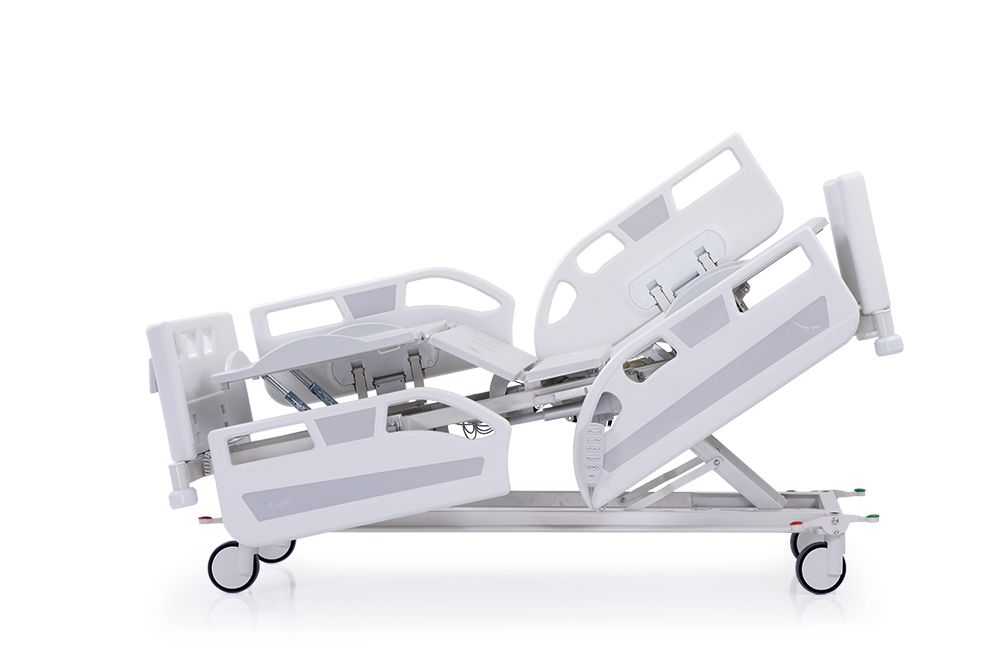

PS-NNB01 Electrical Intensive Care Bed

Electrically operated backrest, footrest, height, Trendelenburg and reverse- Trendelenburg movements
Electrically operated vascular, cardiac and fowler positions
Patient control unit and nurse control unit
Auto CPR
Auto contour
Retracting backrest for pressure relief
Fold down PP side rails
Electrostatic powder coated metal frame
Easily removable ABS bed platform
Easily removable PP head and foot boards
Central and directional lockable castors
Height adjustable stainless steel IV pole
Easily adjustable knee break position
Plastic bumpers in the four corners of the bed
Battery backup
Dual sided manual CPR in the backrest
Accessories sockets at the bed corners
Angle indicator for backrest and Trendelenburg
One button Cardiac chair, shock position, semi- fowler position, bed exit position and examination position adjustments
Hand control unit is lockable to prevent any undesirable position
Bed extension up to 18 cm (optional)
X-Ray translucent backrest and Cassette holder (optional)
IPX4 standard electronic system
Integrated weighing scale (optional)

Technical Data:

Overall Length: 212 cm
Overall Width: 102 cm
Height Range: 40-82cm
Trendelenburg: 0°-16°
Reverse Trendelenburg: 0°-16°
Backrest Angle (Max.): 70°
Legrest Angle (Max.): 40°
Castor Diameter: 15 cm
Under Bed Clearance: 15 cm
Safe Working Load: 230 kg

Electrical Data:

Power In: 1.5 A max. 230V AC 50-60 Hz
Electrical Shock Protection : Class I, Type B
Liquid Ingress Protection : IPX4 - IPX6
Batteries : 2x 12V Series, Connected, Sealed, Rechargeable, Lead / Acid gel,   12 amp hrs.
