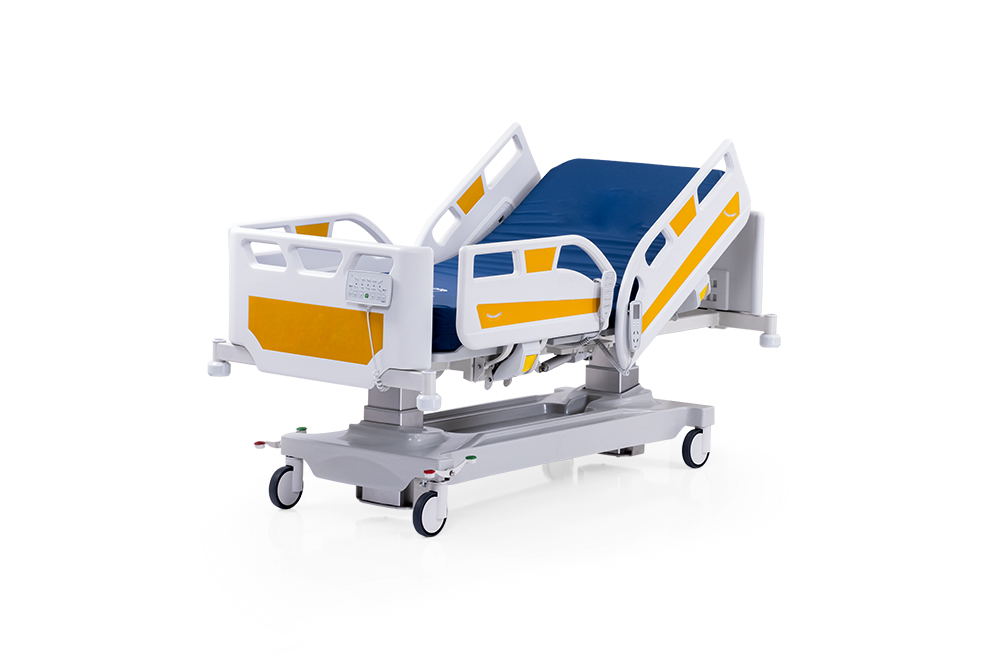

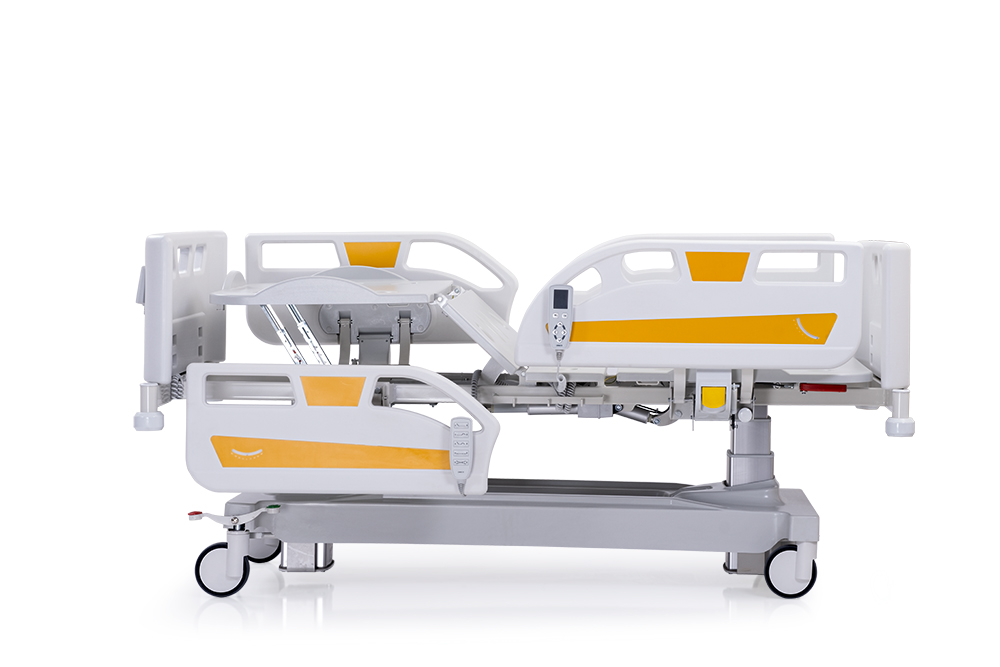

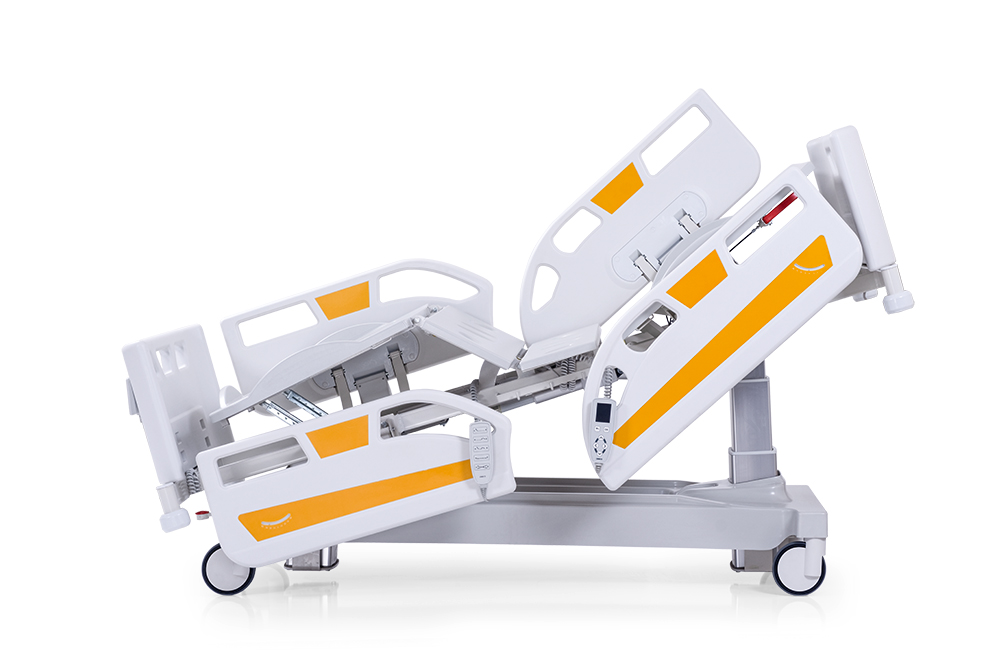

PS-NNBC01 Electrical Intensive Care Bed, Columnar Motor

Integrated weighing scale (optional)

Electrically operated backrest, footrest, height, Trendelenburg and reverse- Trendelenburg movements

Electrically operated vascular, cardiac and fowler positions

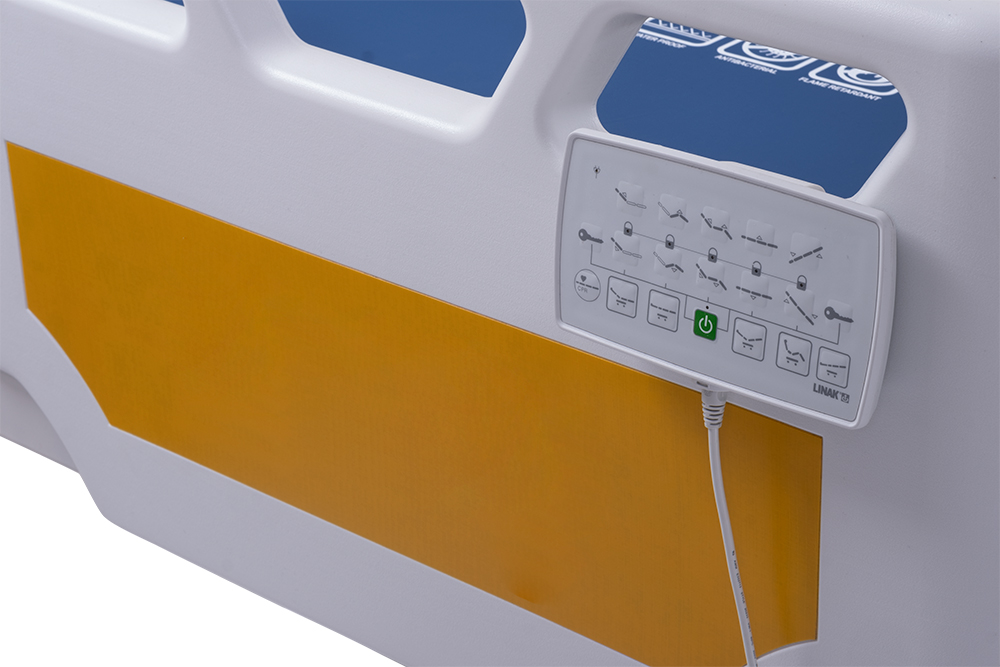

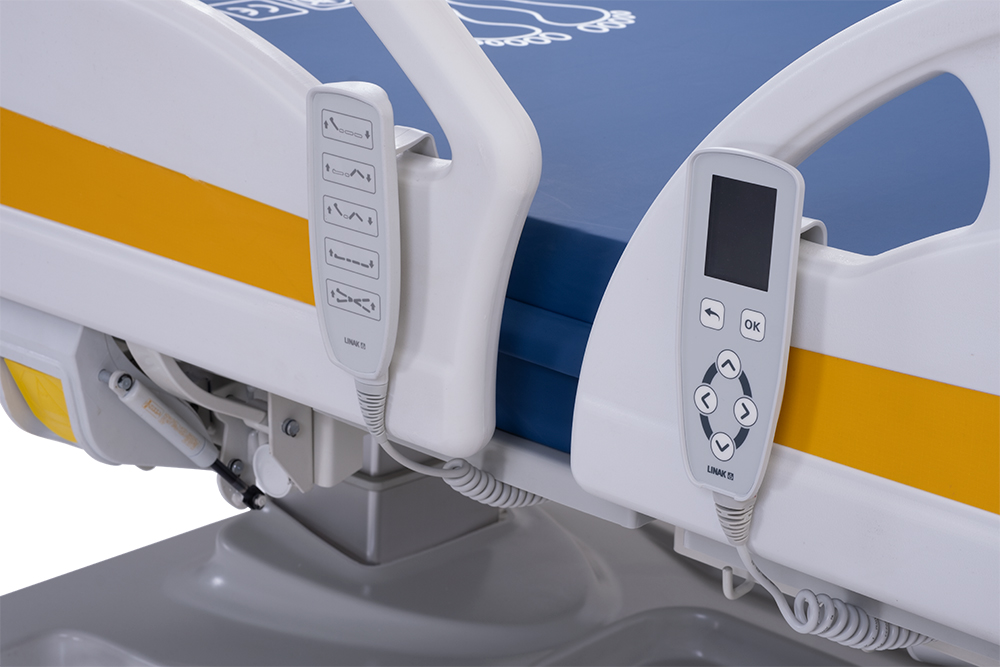

Patient control unit and nurse control unit

Auto CPR

Auto contour

Retracting backrest for pressure relief

Fold down PP side rails

Electrostatic powder coated metal frame

Easily removable ABS bed platform

Easily removable PP head and foot boards

Central and directional lockable castors

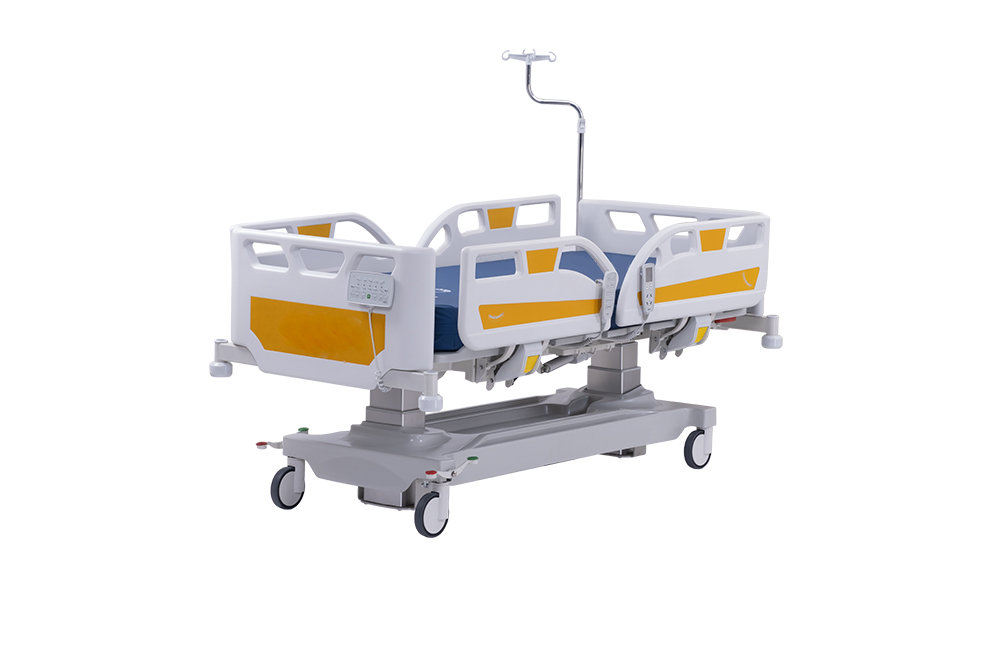

Height adjustable stainless steel IV pole

Easily adjustable knee break position

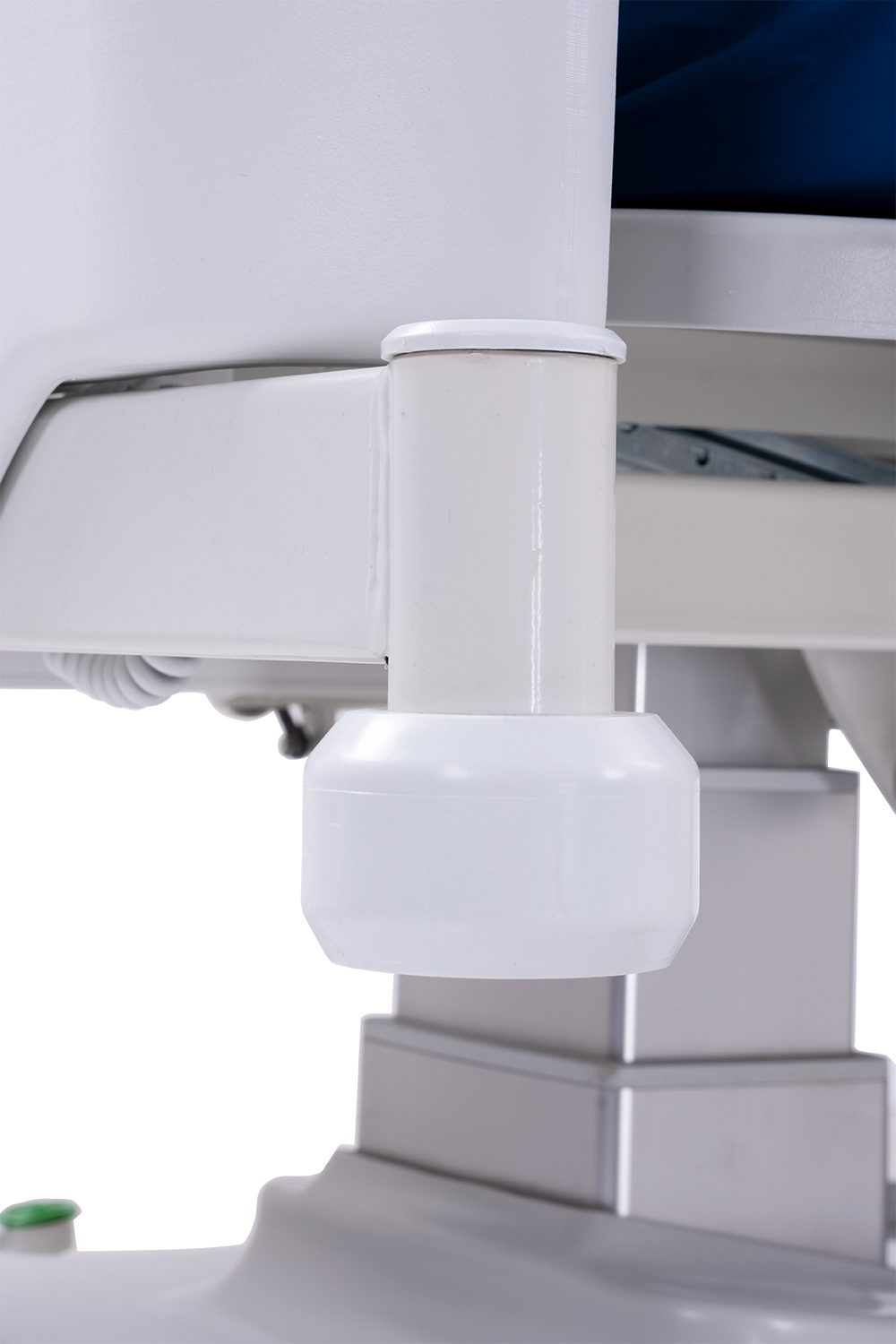

Plastic bumpers in the four corners of the bed

Battery backup

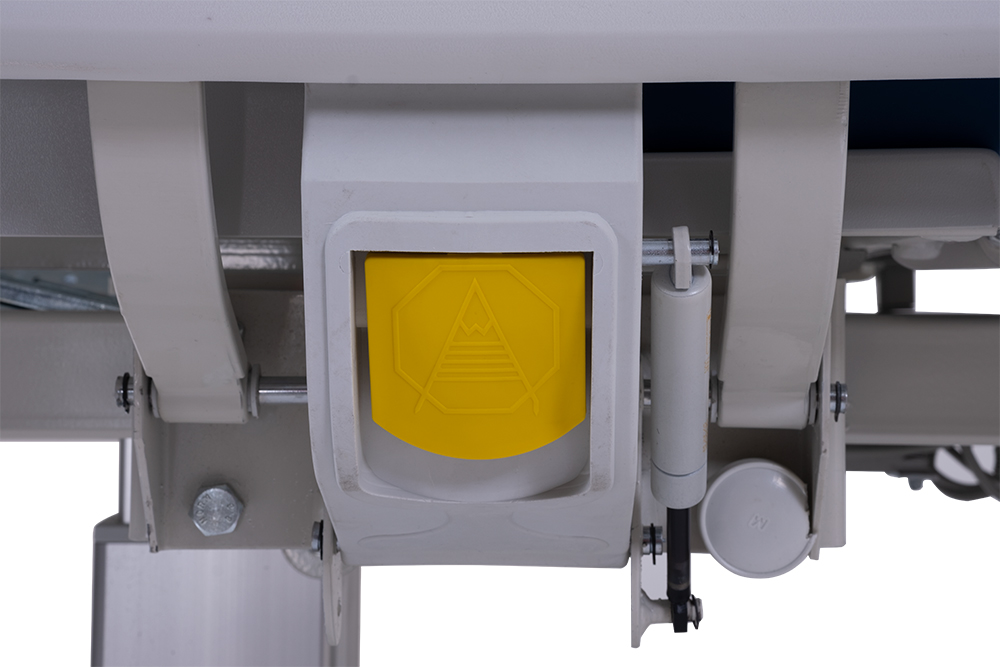

Dual sided manual CPR in the backrest

Accessories sockets at the bed corners

Angle indicator for backrest and Trendelenburg

One button Cardiac chair, shock position, semi- fowler position, bed exit position and examination position adjustments

Hand control unit is lockable to prevent any undesirable position

Bed extension up to 18 cm

X-Ray translucent backrest and Cassette holder

IPX4 standard electronic system


Technical Data:

Overall Length: 212 cm

Overall Width: 102 cm

Height Range: 45-85cm

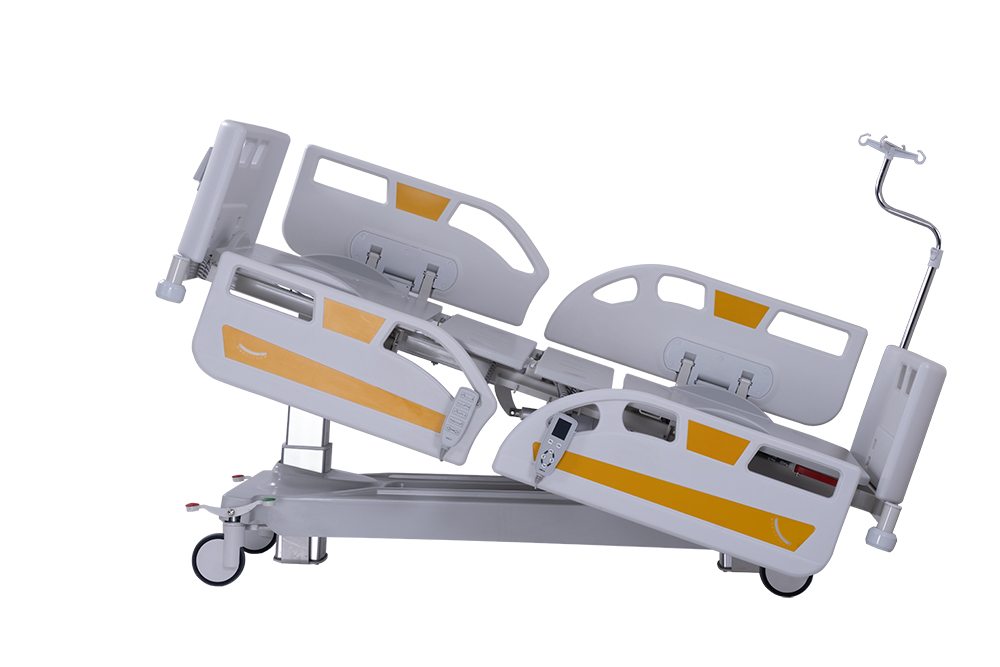

Trendelenburg: 0°-16°

Reverse Trendelenburg: 0°-16°

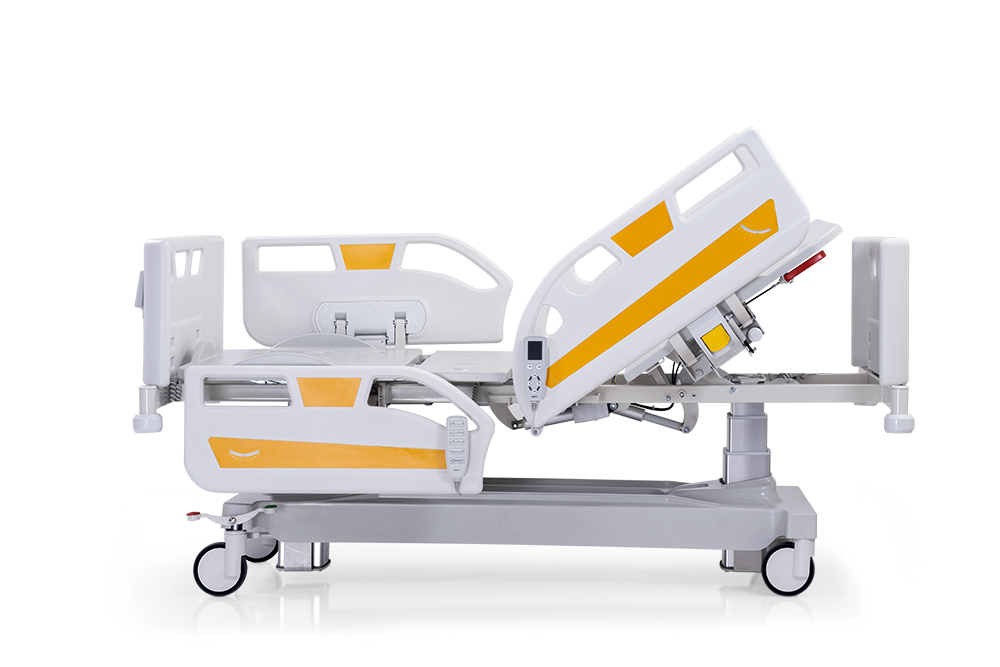

Backrest Angle (Max.): 70°

Legrest Angle (Max.): 40°

Castor Diameter: 15 cm

Under Bed Clearance: 15 cm

Safe Working Load: 250 kg

Electrical Data:

Power In: 1.5 A max. 230V AC 50-60 Hz

Electrical Shock Protection : Class I, Type B

Liquid Ingress Protection : IPX4 - IPX6

Batteries : 2x 12V Series, Connected, Sealed, Rechargeable, Lead / Acid gel,   12 amp hrs.
