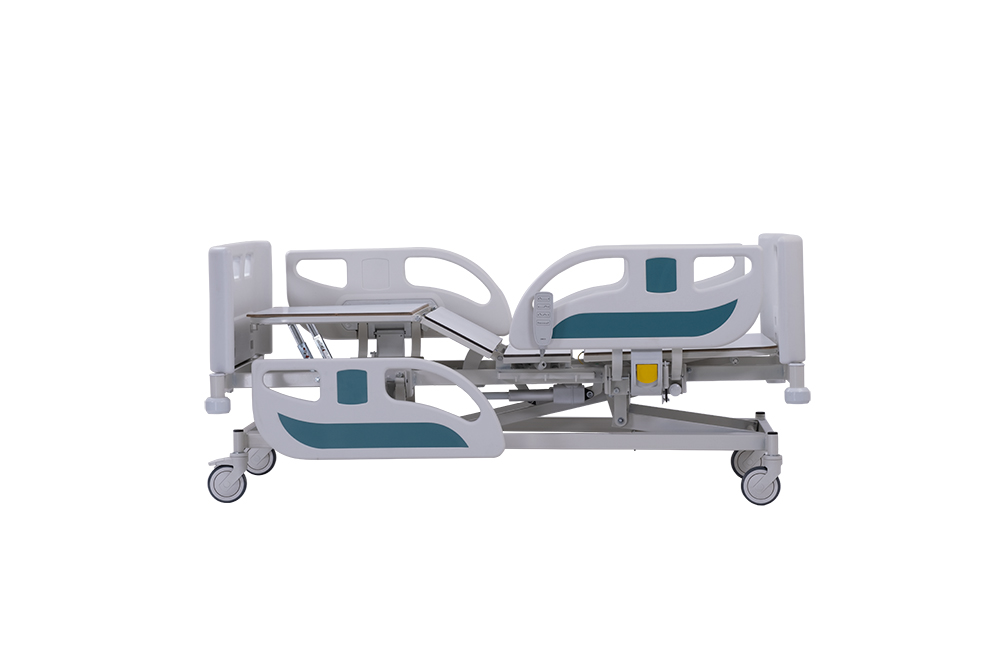

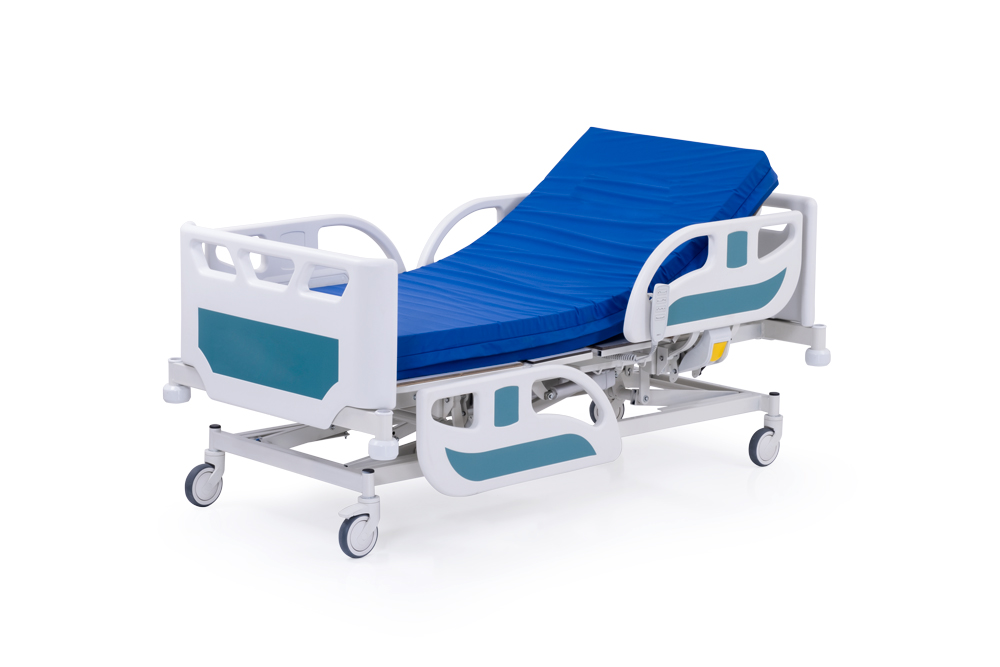

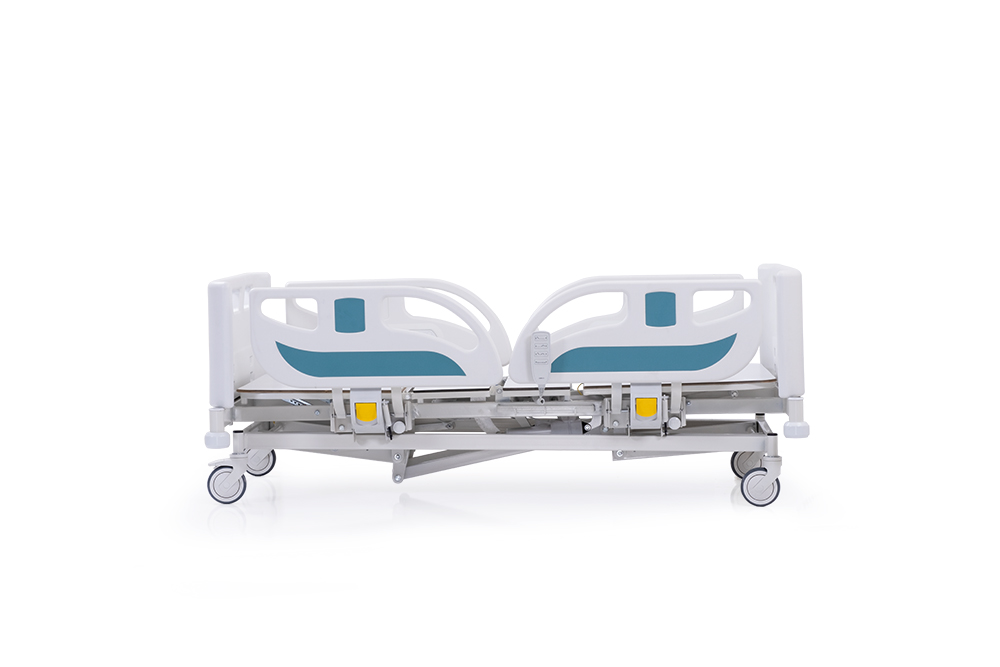

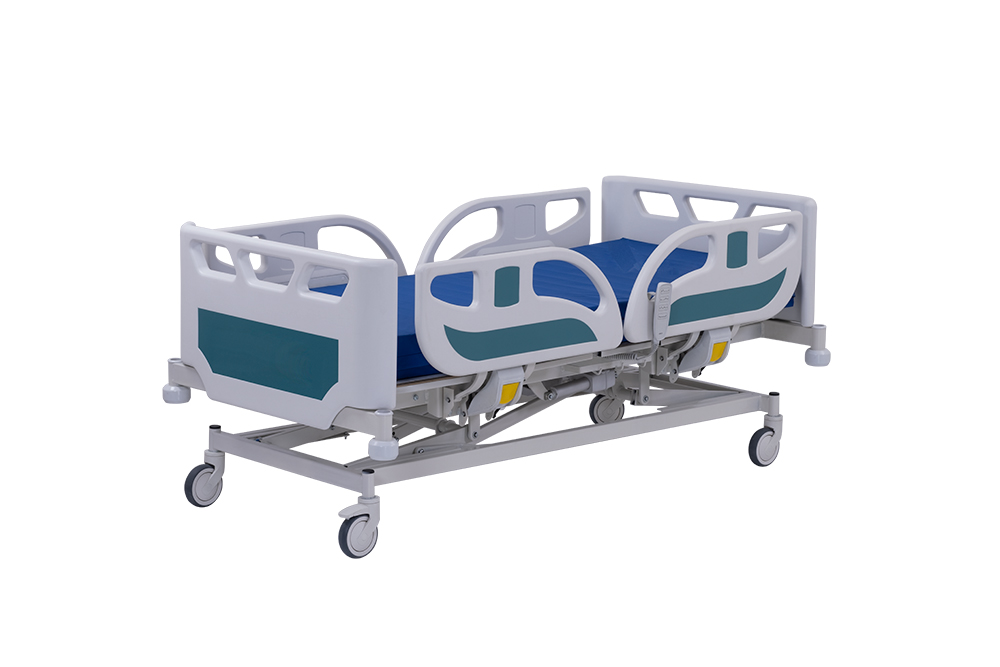

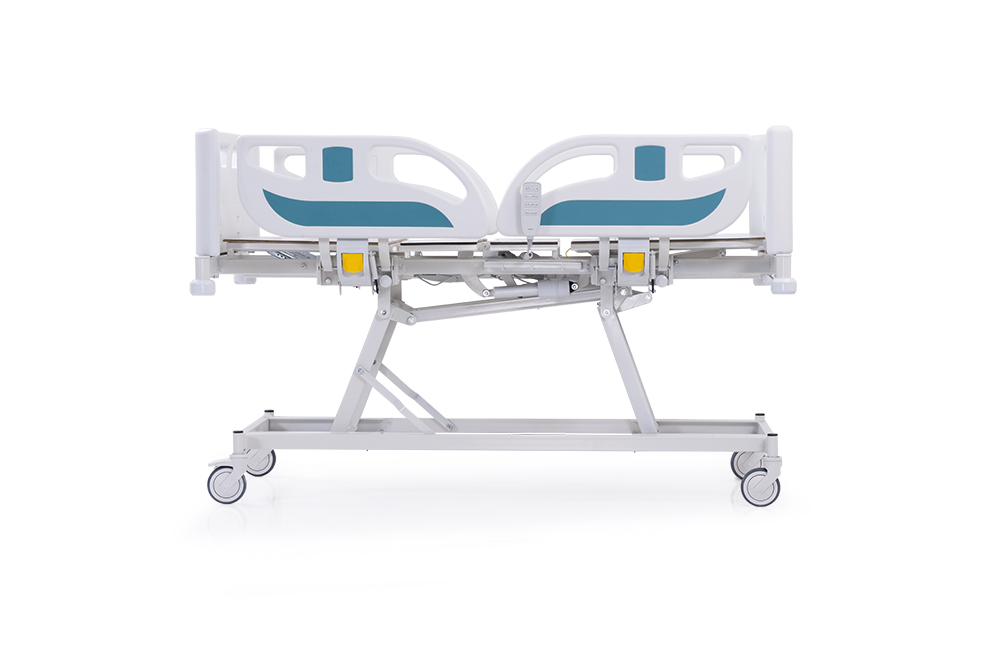

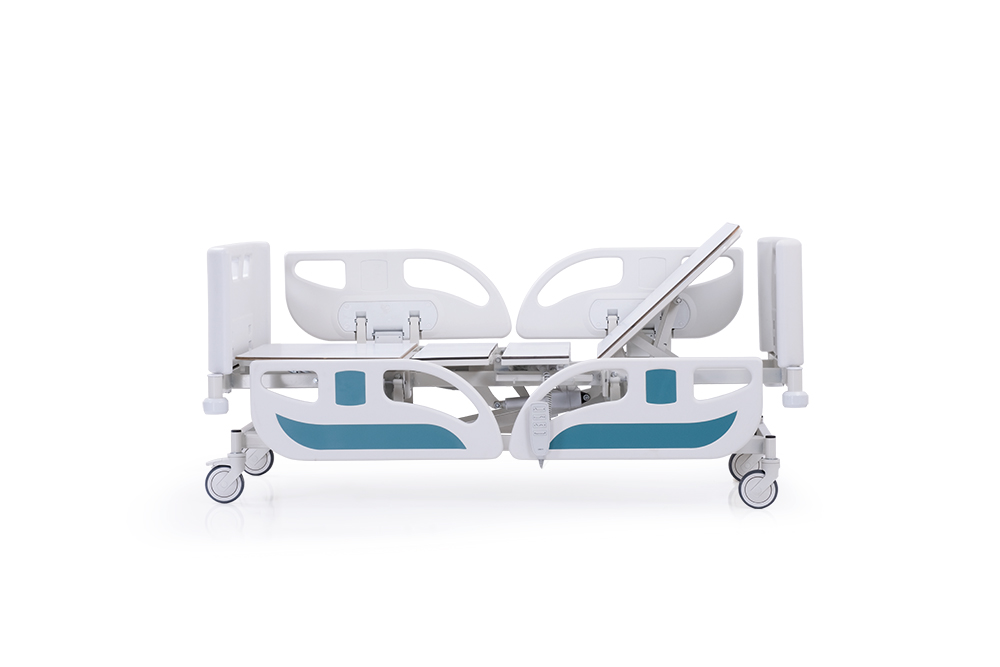

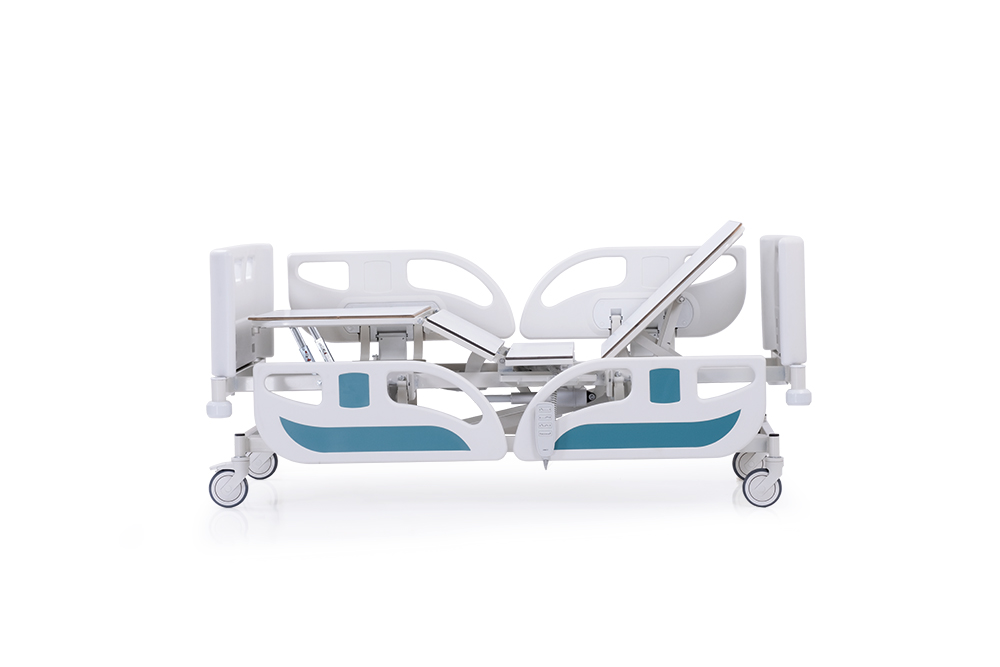

PS-NEPB02 Electrical Pediatric  Bed, Three Motor

Electrical adjustment of backrest, footrest & height

Patient hand control

Auto CPR

Retracting backrest and footrest

Auto contour

Fold down PP siderails

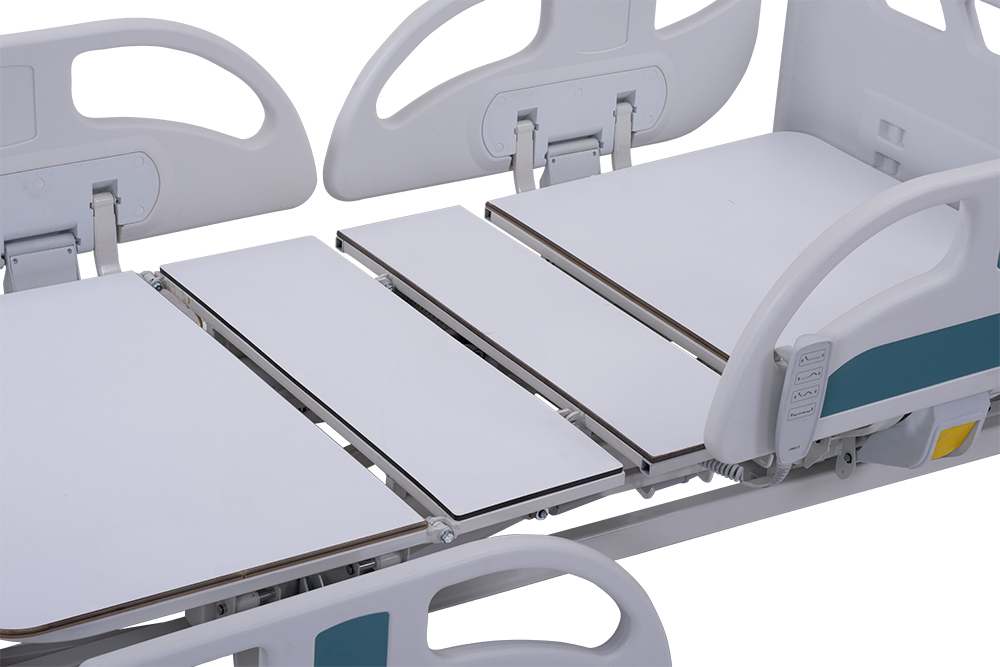

Wire mesh bed platform

Profile frame with removable ABS cover

Removable head and footboards

Two lockable castors

Electrostatic painted steel frame

Height adjustable stainless steel IV pole

Easy knee break position

Plastic bumpers in the four corners of the bed

Battery backup (optional)

Instant CPR in the Backrest (optional)

Accessories sockets in the four corners of the bed

Trendelenburg adjustment by gas spring (optional)

X-Ray translucent backrest and Cassette holder (optional)

IPX4 standard electronic system

Technical Data:

Overall Length: 195 cm

Overall Width: 95 cm

Height Range: 40-82 cm

Trendelenburg: 0°-16°

Reverse Trendelenburg: 0°-16°

Backrest Angle (Max.): 70°

Legrest Angle (Max.): 40°

Castor Diameter: 12,5 cm

Under Bed Clearance: 15 cm

Safe Working Load: 180 kg


Electrical Data:

Power In: 1.5 A max. 230V AC 50-60 Hz

Electrical Shock Protection : Class I, Type B

Liquid Ingress Protection : IPX4 - IPX6

Batteries :  2x 12V Series, Connected, Sealed, Rechargeable, Lead / Acid gel,   12 amp hrs.
